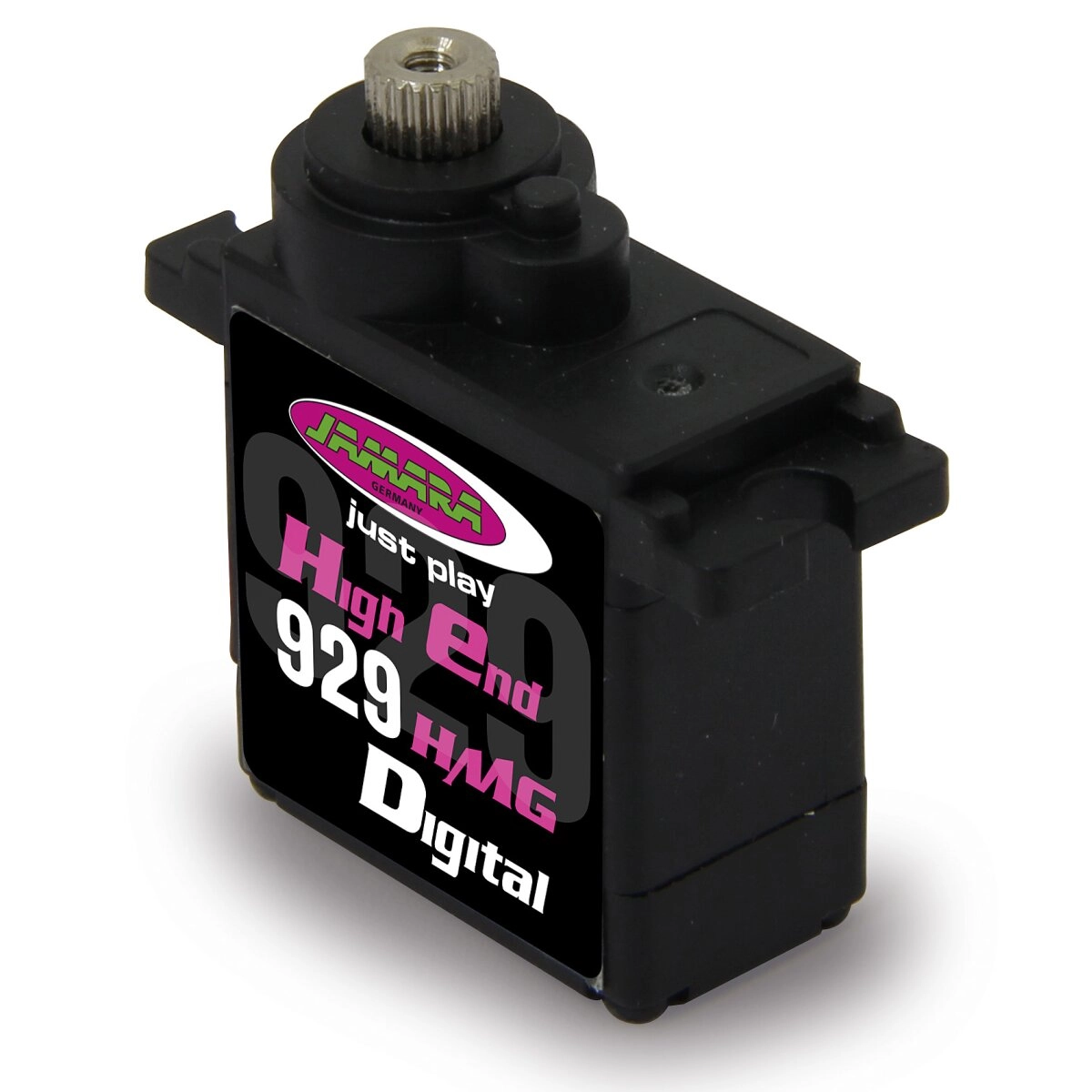

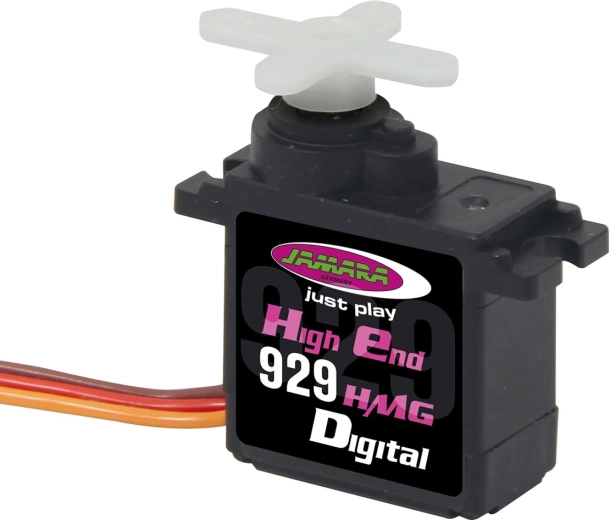

Jamara High End 929HMG digital servo offers precise control, fast response, and metal gears for reliable use in RC models. Thanks to its ball bearing and torque of up to 2.0 kg/cm, it is suitable for demanding model-making applications.
The Jamara High End 929HMG servo is a compact digital RC servo designed for precise control of moving parts in models. When powered at 4.8–6 V, it provides a speed of up to 0.11 s/60° and torque of up to 2.0 kg/cm.
Main features:
- digital design for a precise response to control signals,
- durable metal gearbox,
- ball bearing for smooth operation,
- 21-tooth servo horn mounting,
- 212 mm power cable.
The package includes the servo and an instruction manual. The charger is not included in the package.
Specifications
- Brand
- Jamara
- Type
- Digital servo
- Supply voltage
- 4.8–6 V
- Maximum current draw at 4.8 V
- 650 mA
- Maximum current draw at 6 V
- 730 mA
- Torque at 4.8 V
- 1.7 kg/cm
- Torque at 6 V
- 2.0 kg/cm
- Speed at 4.8 V
- 0.13 s/60°
- Speed at 6 V
- 0.11 s/60°
- Cable length
- 212 mm
- Servo horn mounting
- 21 teeth
- Gears
- Metal
- Ball bearing
- Yes
- Charger
- No
- Package contents
- Servo, instruction manual
- CE
- Yes
