Portable two-channel oscilloscope with a multimeter function is a practical instrument for measuring and analyzing electrical signals. It features a 3.5″ color LCD display, a built-in battery, input voltage of up to 400 V, data and screen capture storage, and a wide range of accessories for convenient use in the workshop, laboratory, or field.

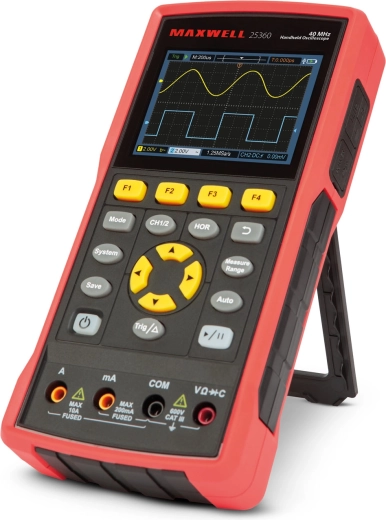

Two-channel signal measurement
Two input channels allow you to monitor and compare electrical signals. The oscilloscope supports automatic, normal, and single triggering for precise waveform capture.

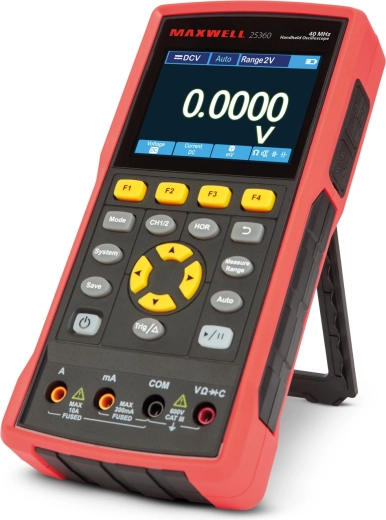

Oscilloscope and multimeter in one

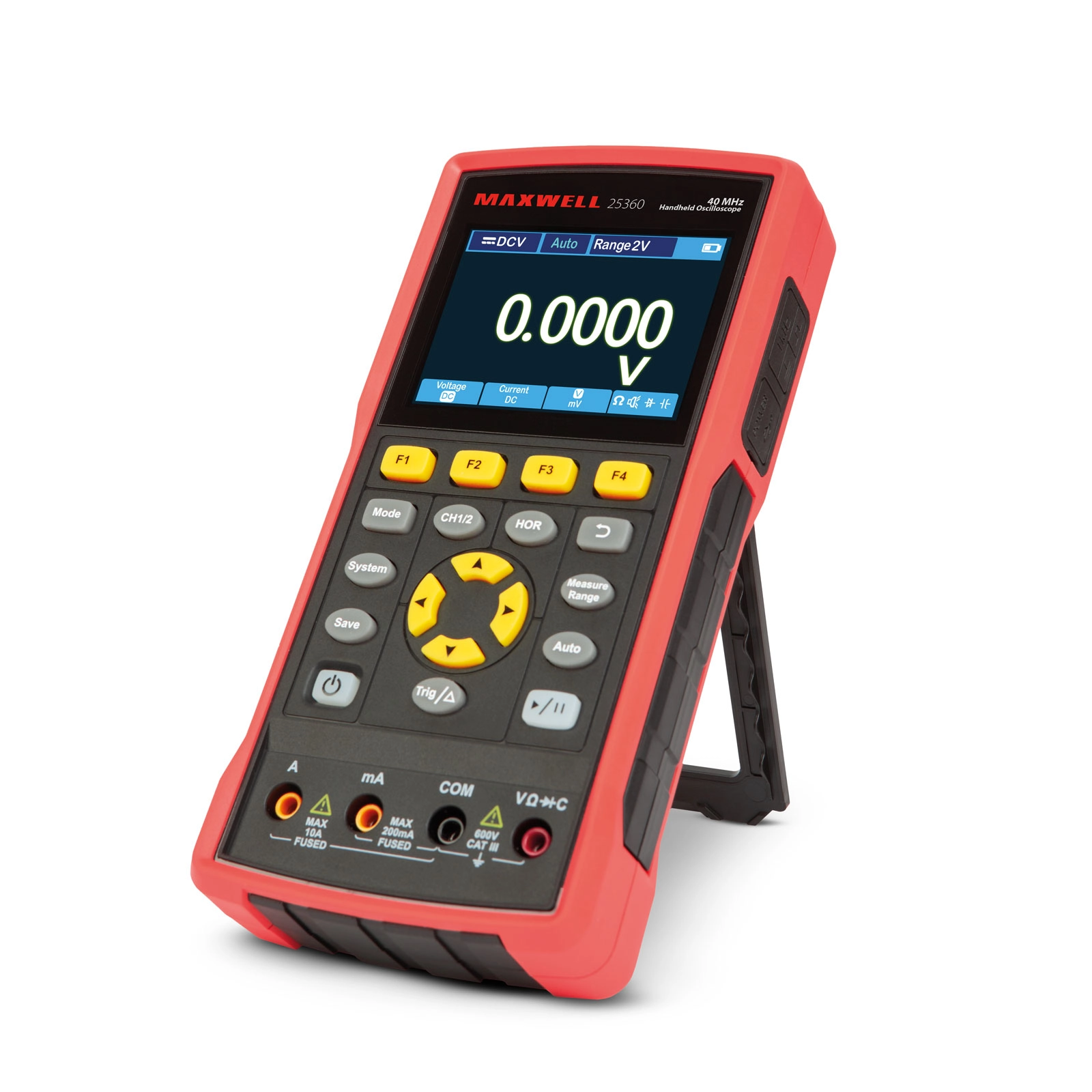

In addition to displaying waveforms, the device measures DC and AC voltage and current, resistance, and capacitance. A practical solution for diagnosing electronic circuits.

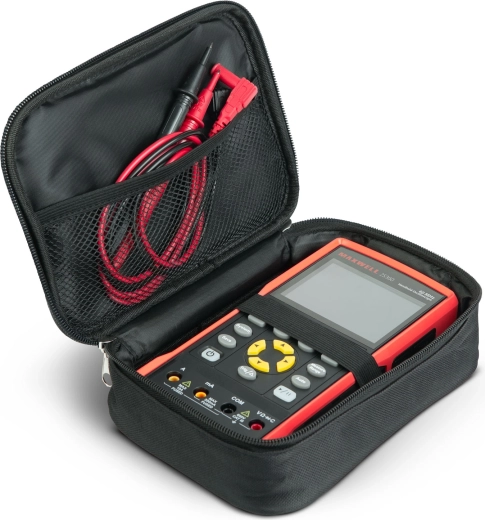

Ready for field work

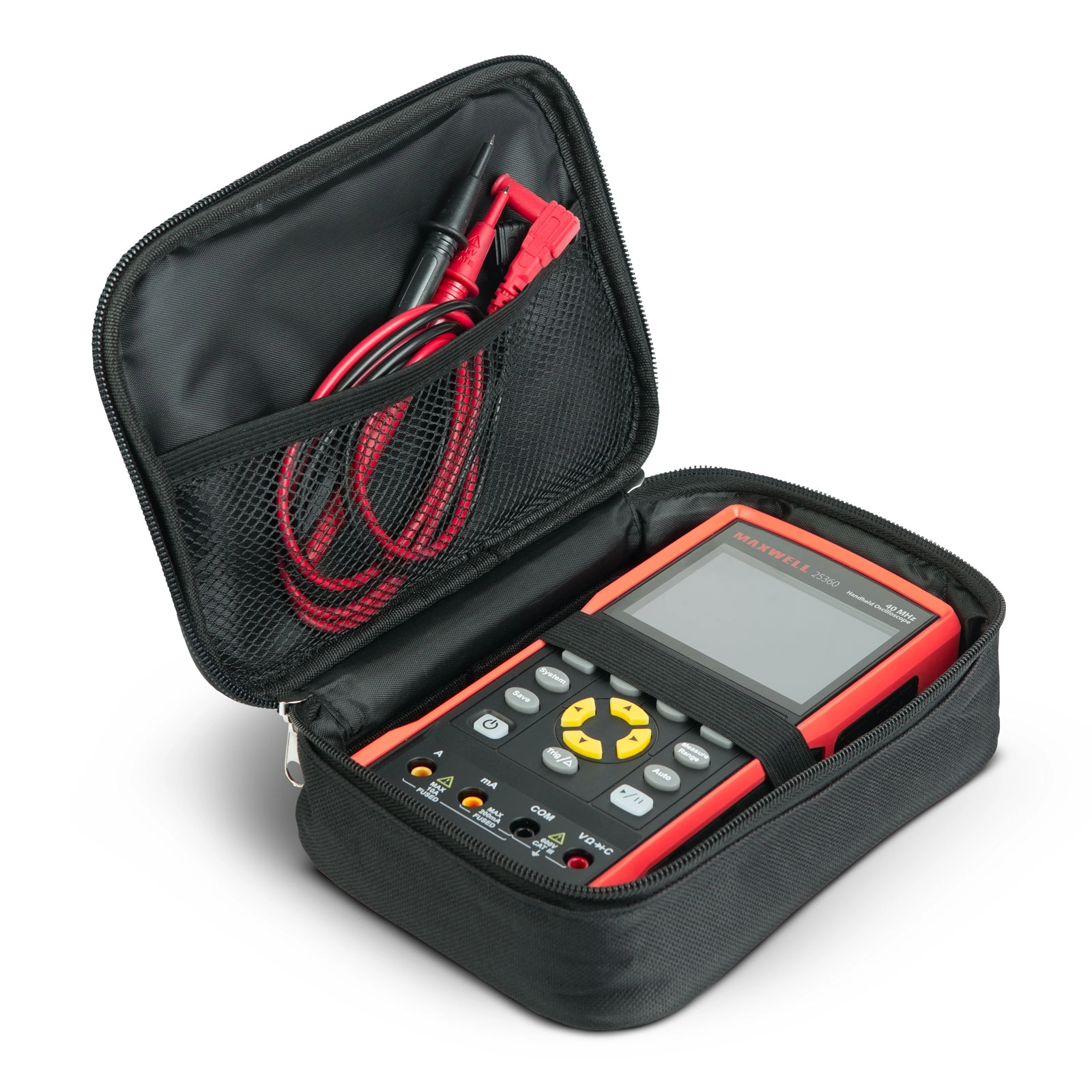

Built-in batteries, compact dimensions, and a protective carrying bag make safe use and transport easier. The package also includes the necessary measuring accessories.
This handheld digital oscilloscope allows you to graphically monitor changes in electrical signals over time and evaluate their frequency, amplitude, and shape. Two channels, trigger settings, and automatic or manual range selection make it a universal measuring instrument for electronics enthusiasts, service technicians, schools, and home workshops.
The integrated multimeter expands the device's capabilities to include measuring DC and AC voltage and current, resistance, and capacitance. The large color display with adjustable brightness and display duration ensures clear reading of values. Data and screenshots can be saved to the internal memory, and the device can be connected to a computer via the USB Type-C interface.
Main advantages:
- two-channel oscilloscope and multimeter in one device,
- non-slip body for a secure grip,
- battery-powered operation for use without mains power,
- automatic and manual measuring range settings,
- storage of measured data and screenshots,

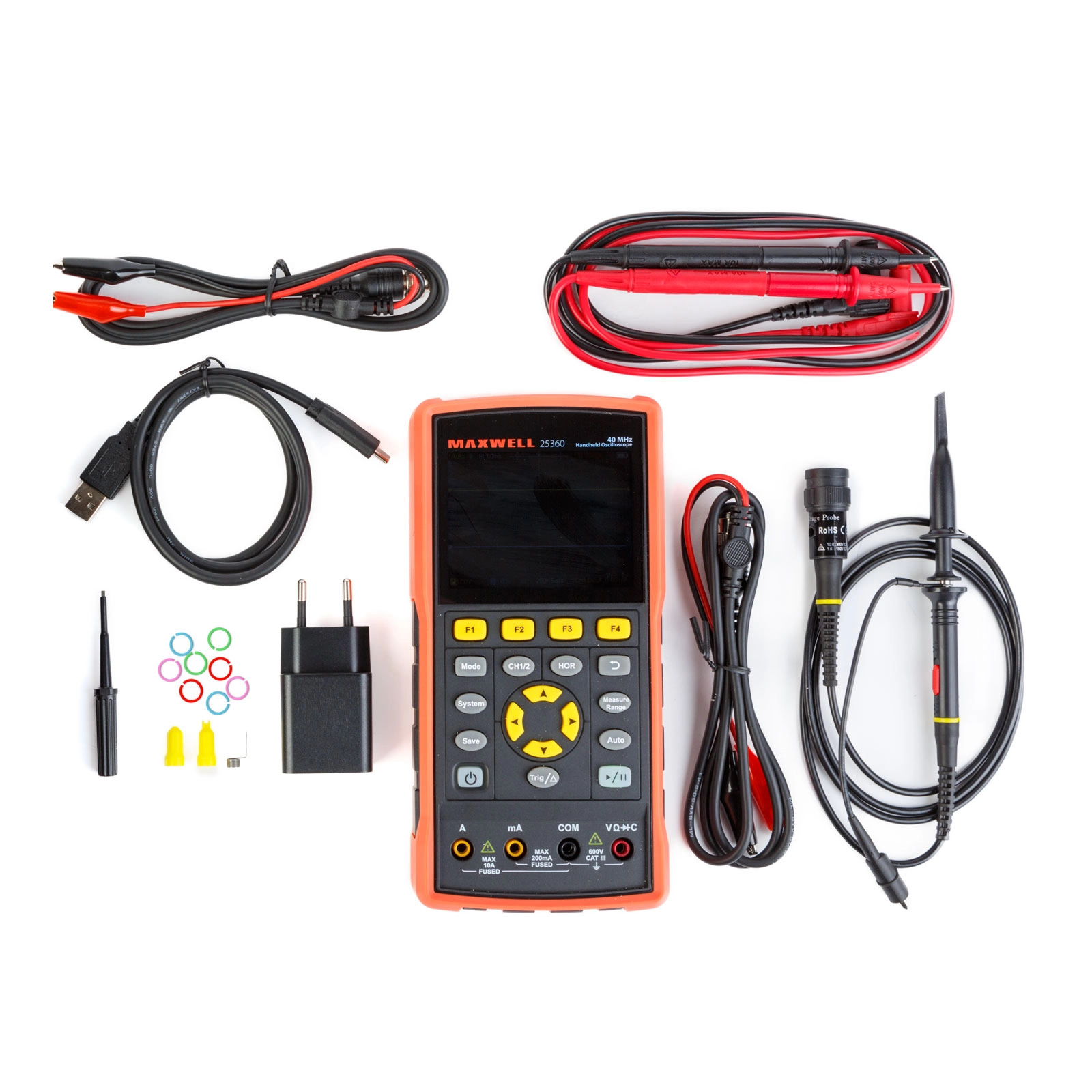

- the package includes a measuring probe, test leads, alligator clips, data cable, power adapter, and carrying bag.
Specifications
- Device type
- Portable two-channel oscilloscope with multimeter
- Dimensions
- 95 × 200 × 38 mm
- Display
- 3.5″ color LCD
- Display resolution
- 320 × 240 px
- Power supply
- 2× built-in 18650 batteries, 2200 mAh, 3.7 V
- Connector
- USB Type-C
- Power adapter
- 100–240 V AC, 50/60 Hz → 5 V DC, 2 A
- Power consumption
- < 5 W
- Operating temperature
- 0 to +40 °C
- Operating humidity
- < 90 %
- Color
- Red
- Weight with battery
- Approximately 600 g
- Oscilloscope bandwidth
- 40–200 MHz
- Number of channels
- 2
- Sampling rate
- 125 MSa/s to 1 GSa/s
- Waveform refresh rate
- 10,000 wfms/s
- Probe attenuation
- 1×, 10×, 100×, 1000×, 10000×
- Maximum oscilloscope input voltage
- 400 V
- Edge trigger type
- Automatic, normal, single
- DC voltage measurement
- 200 mV to 1000 V
- DC current measurement
- 200 mA to 10 A
- AC voltage measurement
- 200 mV to 750 V
- AC current measurement
- 200 mA to 10 A
- Resistance measurement
- 200 Ω to 100 MΩ
- Capacitance measurement
- 20 nF to 2 mF
- Functions
- Adjustable brightness and screen time, internal memory, data and screenshot storage, computer software
- Package contents
- Measuring probe, test leads, alligator clips, data cable, power adapter, carrying bag
