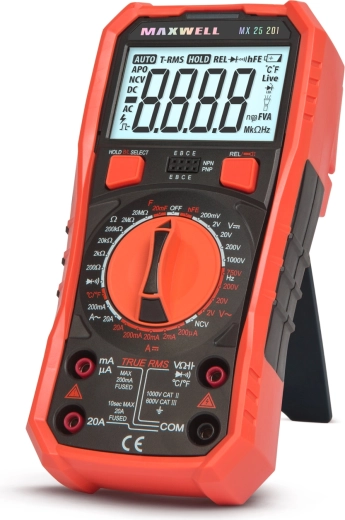

The versatile Maxwell True RMS digital multimeter offers accurate measurement of voltage, current, resistance, capacitance, and temperature. Practical features such as NCV non-contact voltage detection, continuity testing, a backlit audible indicator, and automatic shut-off make it a reliable tool for home and professional use.
Accurate True RMS Measurement
The True RMS function ensures more reliable measurement of AC voltage and current, including non-linear signals. The multimeter is suitable for a wide range of electrical installation and service work.
Wide Range of Measured Values
Measure voltage up to 1000 V DC and 750 V AC, current up to 20 A, resistance up to 20 MΩ, capacitance up to 20,000 µF, and temperature from -40 to +1000 °C.

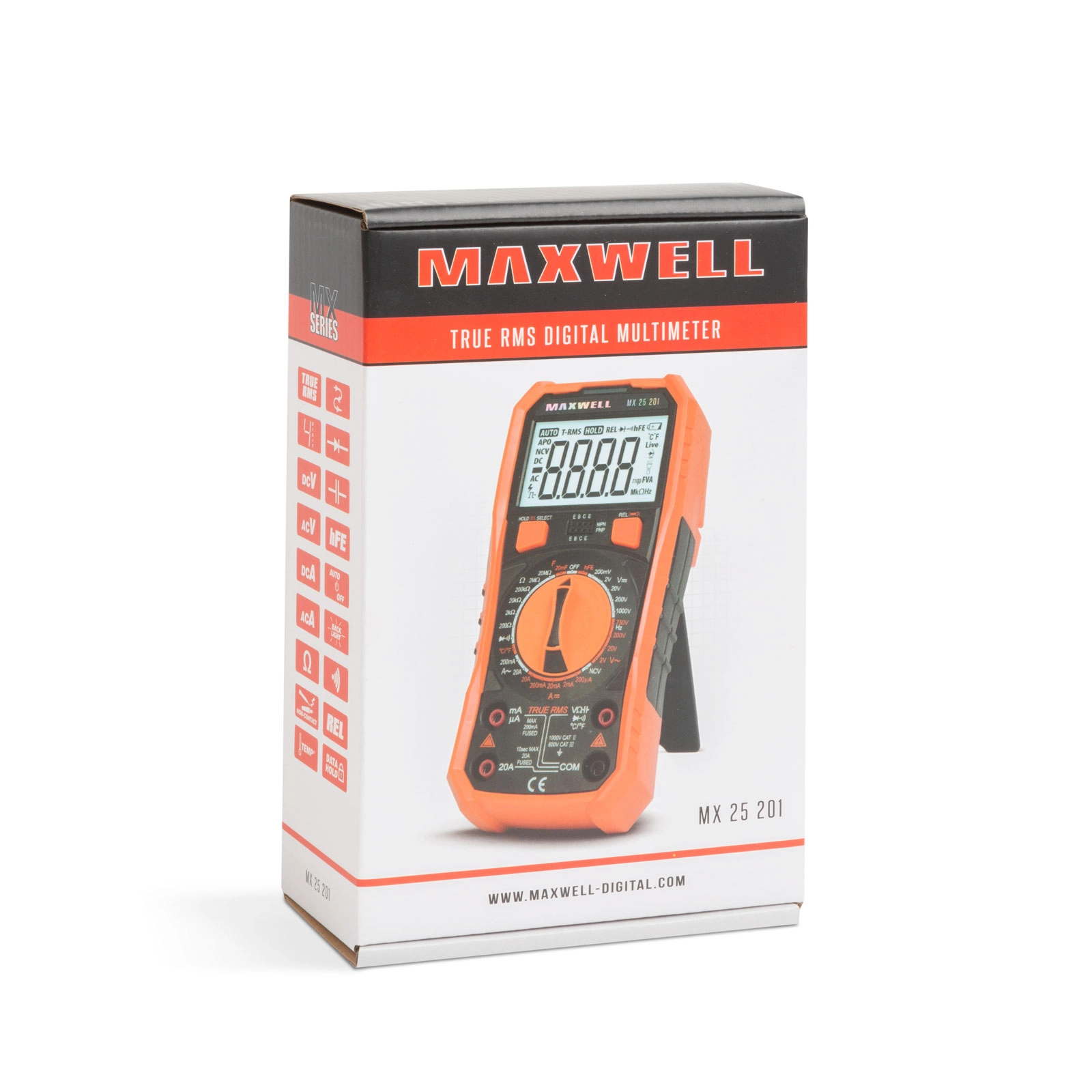

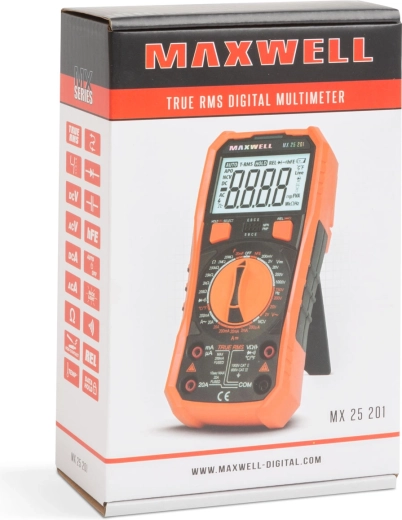

Complete Accessories for Immediate Use

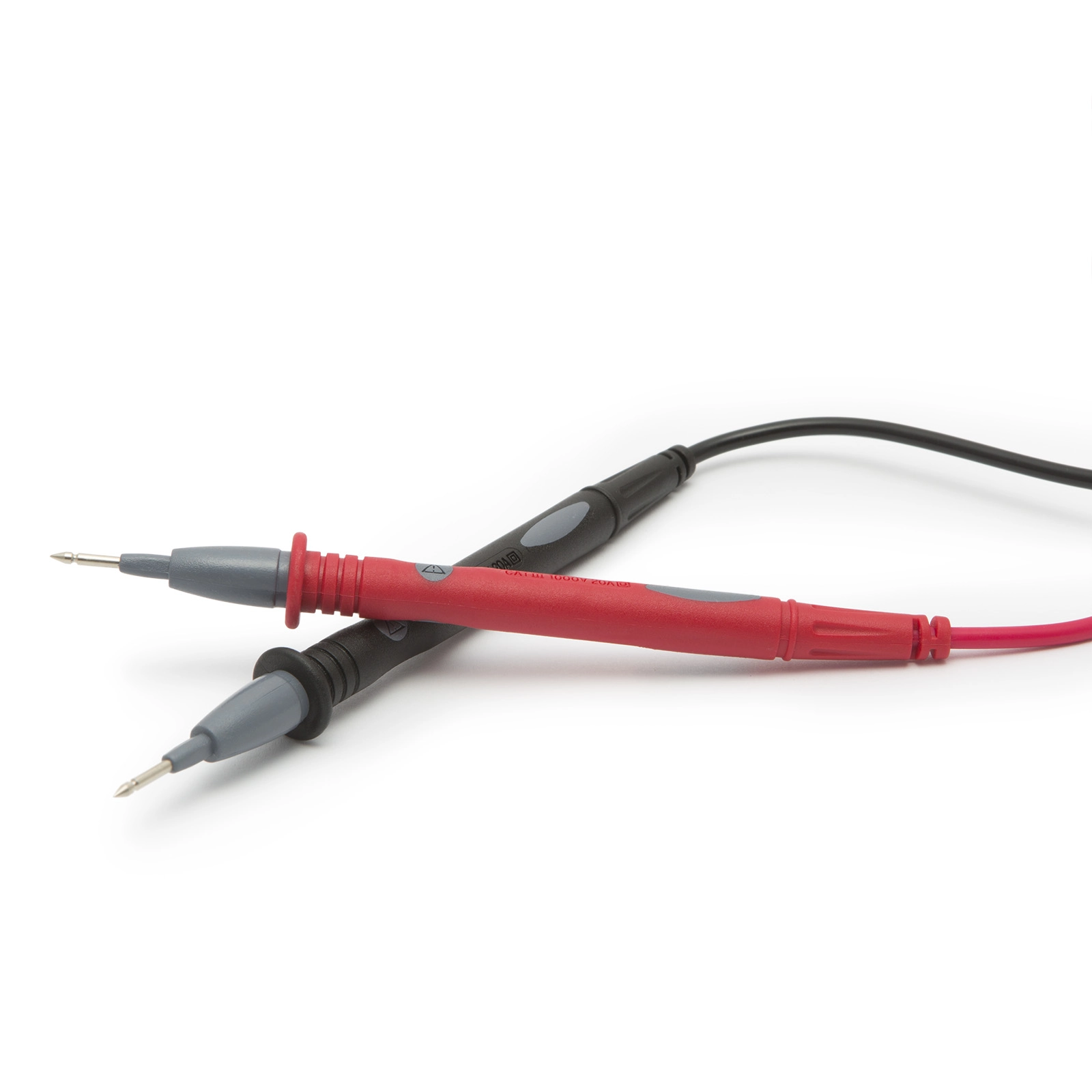

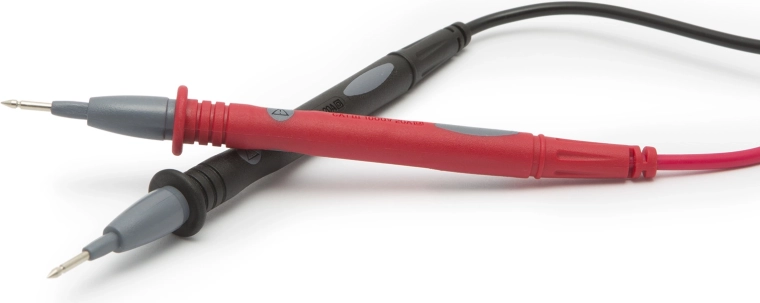

The package includes test leads, a temperature probe, and two 1.5 V AA batteries. You can start using the multimeter immediately after unpacking it.
The Maxwell digital multimeter is a versatile measuring instrument for checking electrical circuits, appliances, and electronic devices. True RMS technology enables more accurate measurement of AC quantities, while the integrated temperature and capacitance measurement expands its range of applications for diagnostics and repairs.
The instrument features a clear 4-digit display, a rotary function selector, and a durable protective design. The data hold function, REL relative measurement, and automatic shut-off increase convenience during everyday measurements.
- measurement of DC and AC voltage and current
- measurement of resistance, capacitance, and temperature
- hFE transistor, diode, and continuity testing with an audible indicator

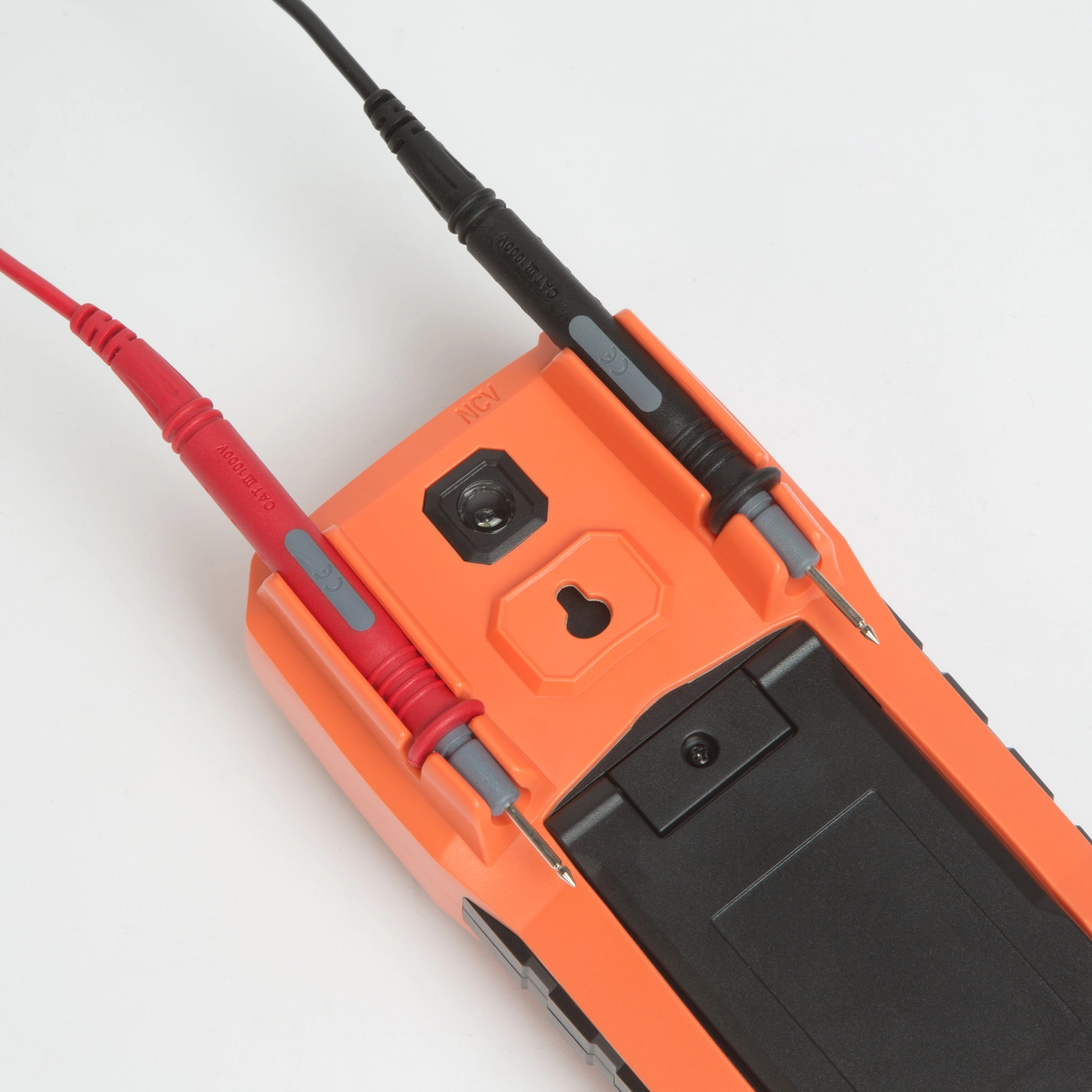

- NCV non-contact voltage detection
- the package includes test leads, a temperature probe, and 2 AA batteries
Specifications
- Type
- True RMS digital multimeter
- Display
- 4-digit
- DC voltage (DC V)
- 0.1 mV to 1000 V
- AC voltage (AC V)
- 1 mV to 750 V
- DC current (DC A)
- 0.1 µA to 20 A
- AC current (AC A)
- 0.1 µA to 20 A
- Resistance
- 0.1 Ω to 20 MΩ
- Capacitance
- 10 pF to 20,000 µF
- Temperature
- -40 °C to +1000 °C
- Functions
- NCV non-contact voltage detection, REL relative measurement, hFE transistor testing, diode testing, continuity testing, audible indicator, data hold, automatic shut-off
- Accessories
- Test leads, temperature probe, 2× 1.5 V AA batteries
- Dimensions
- 190 × 90 × 40 mm
