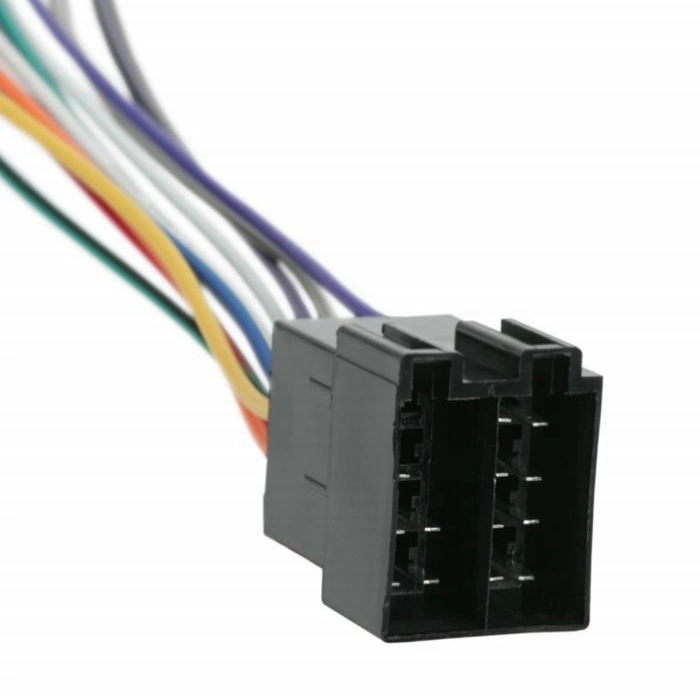

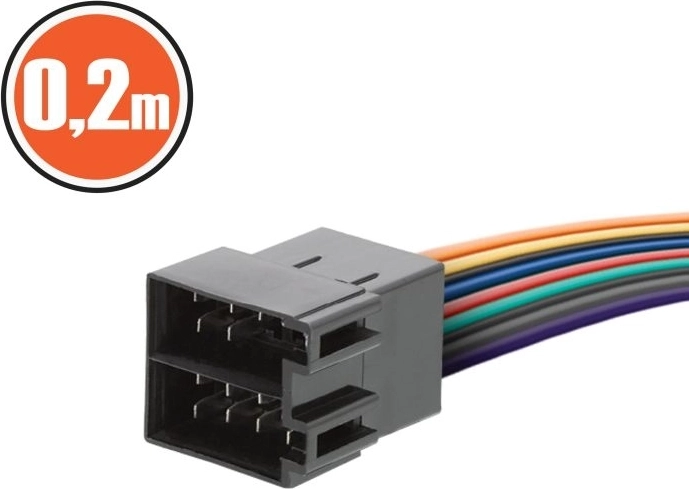

ISO connector with 0.2 m cable

The ISO connector with a short 0.2 m cable is designed for installing and connecting a car radio in a vehicle. It provides connections for speaker wires as well as basic power and control functions, including constant power for memory, switched power, grounding and an electric antenna.

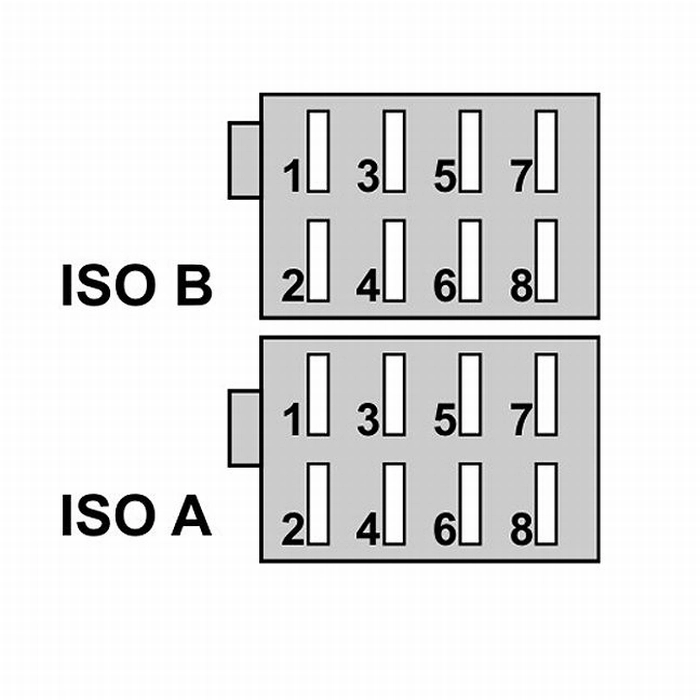

Speaker connections:

• right rear speaker: B1 (+), B2 (-)
• right front speaker: B3 (+), B4 (-)
• left rear and front speakers: according to the connector wire markings

Wires A1 and A3 are not connected. Before installation, we recommend checking the compatibility and specific connector wiring in the vehicle.
