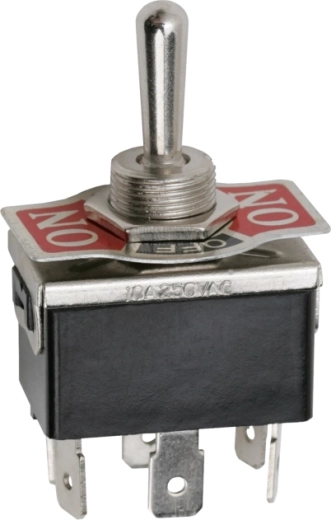

The robust metal DPDT toggle switch is designed for technical equipment and machinery. It offers 2 circuits, an ON-OFF-ON position configuration, and a load capacity of up to 10 A at 250 V AC.
This metal toggle switch is a practical choice for controlling electrical circuits in technical machinery, devices, and other installations. The DPDT type enables switching two independent circuits, while the central OFF position is used to switch them off.
Main features:
- DPDT design with 2 circuits,
- three-position ON-OFF-ON switching,
- metal housing for durable use,
- 6 solderable contacts,
- thread for easy panel mounting.
Specifications
- Switch type
- DPDT
- Number of circuits
- 2
- Switching position
- ON-OFF-ON
- Rated current
- 10 A (15 A)
- Rated voltage
- 250 V AC

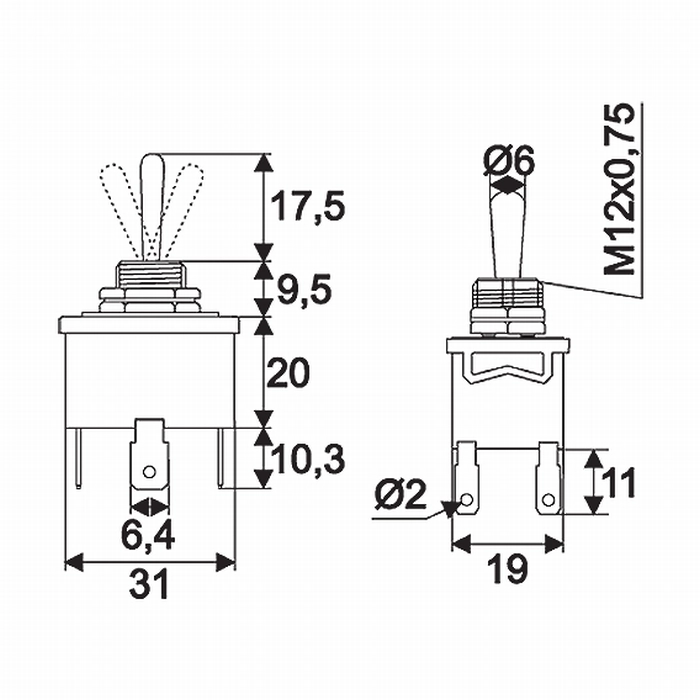

- Mounting depth
- 30.3 mm
- Switch width
- 19 mm
- Switch length
- 31 mm
- Lever diameter
- 6 mm
- Mounting thread
- M12 × 0.75 mm
- Contacts
- 6 solderable contacts
- Housing material
- Metal
