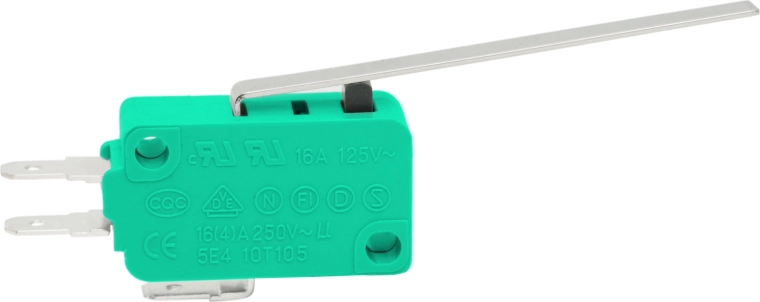

KW3A Microswitch is a safe and reliable basic switch with short contact travel and quick response. It is suitable for use in electronic and telecommunications equipment as well as automotive technology.
The KW3A Microswitch features an SPDT changeover contact and an ON-(ON) function. Thanks to its compact design and fast switching, it is suitable for various control, signaling, and automation applications.
Main features:
- 1 switching circuit
- Rated current 4 A, maximum 16 A
- Operating voltage up to 250 V AC

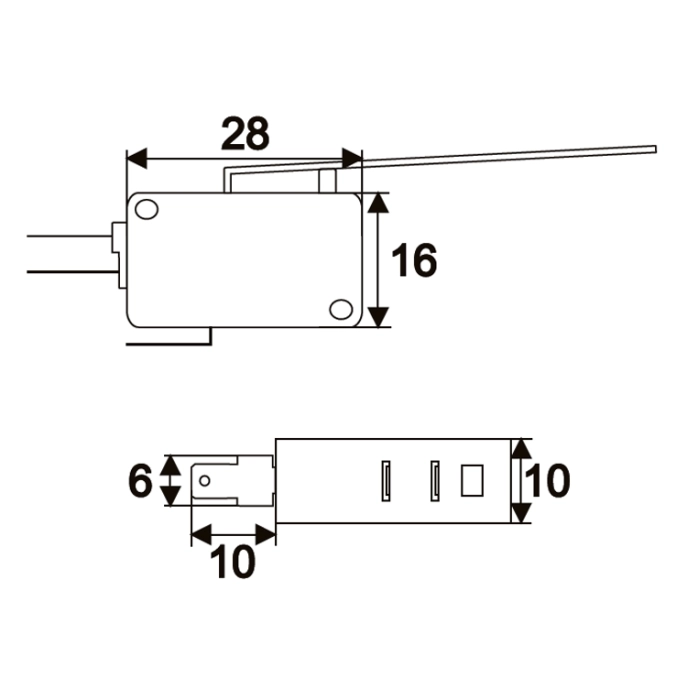

- Compact connection terminal 4.8 × 0.5 mm
- Maximum operating temperature 85 °C
Specifications
- Product type
- Microswitch
- Model
- KW3A
- Number of circuits
- 1
- Switch type
- SPDT (changeover switch)
- Switch function
- ON-(ON)
- Rated current
- 4 A (max. 16 A)
- Rated voltage
- 250 V AC
- Connection size
- 4.8 × 0.5 mm
- Maximum temperature
- 85 °C
- Weight
- 6.2 g
