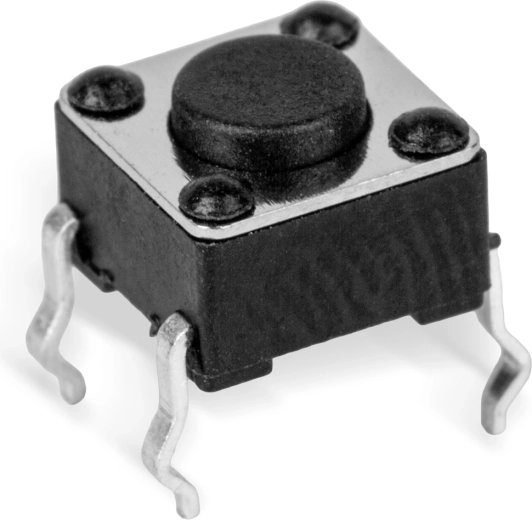

The compact single-circuit micro switch with (OFF)–ON function is suitable for hobby electronics, automotive applications, and remote controls. It offers a rating of 0.05 A / 12 V DC and low resistance of up to 100 mΩ.
The micro switch is a practical component for switching electrical circuits in small electronic devices. Thanks to its compact dimensions of 6 × 6 × 7.4 mm, it easily fits into projects, controllers, and other devices with limited space.
Main advantages:
- single-circuit design,
- (OFF)–ON switching function,
- low resistance of up to 100 mΩ,
- service life of approximately 50,000 to 100,000 switching cycles,
- suitable for hobby electronics, cars, and remote controls.
Specifications
- Type
- Single-circuit micro switch
- Switching function
- (OFF)–ON
- Rated current and voltage
- 0.05 A / 12 V DC
- Resistance
- Max. 100 mΩ
- Service life
- 50,000 to 100,000 switching cycles

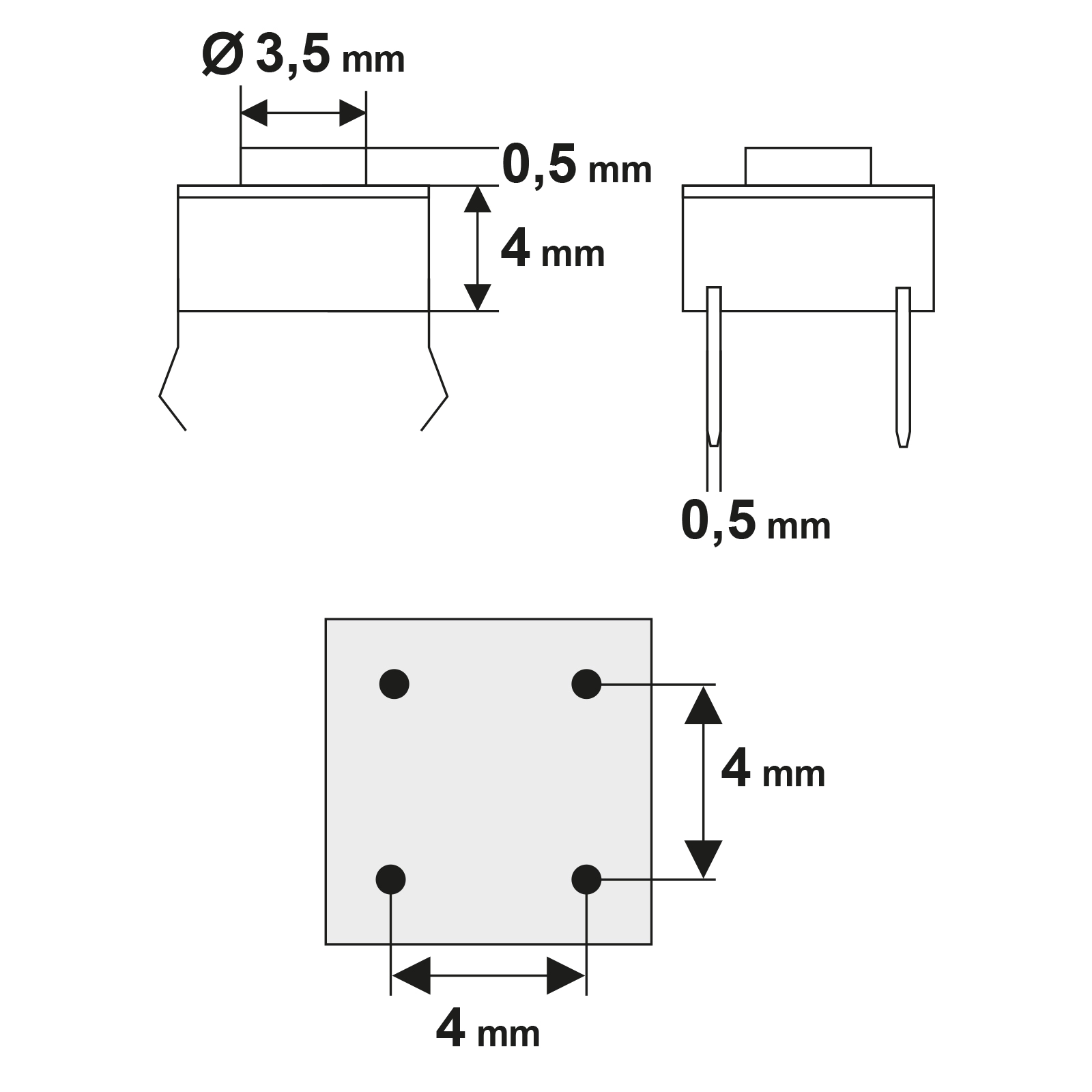

- Dimensions
- 6 × 6 × 7.4 mm
- Body height
- 4 mm
- Button diameter
- Ø 3.5 mm
